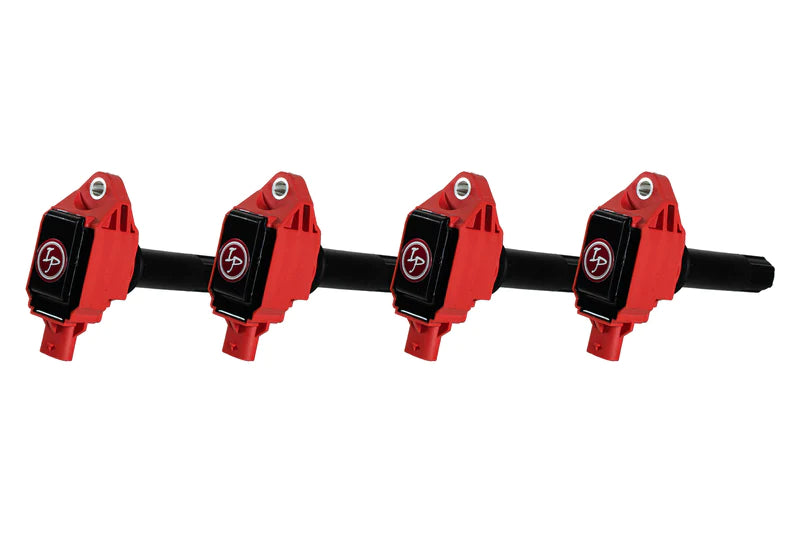

Ignition Projects Quad Spark Ignition Coil Packs - 13-14 BRZ
-
This product is NOT suitable for Heavy power modification or Race vehicle (Warranty VOID on these vehicles)
- For Heavy power modification or Race vehicles, please refer to Part# IP-A149401
Introducing the IP Power Coil Multi Spark
The IP Power Coil Multi Spark has been designed to enhance ignition performance, improving both starting and overall driving experience. Traditional multi-spark generating units tend to be bulky, making it challenging to integrate them into a direct ignition coil. However, we have successfully miniaturized this multi-spark generating system and seamlessly incorporated it into the igniter module of a direct ignition coil.
Performance Highlights:
-
Advanced Multi-Spark Technology: At low to medium RPMs, the system generates four sparks in increments of 1/1000th of a second, significantly enhancing ignition performance.
-
Optimized Power Output: While at high RPMs it switches to a single spark, the increased coil winding ratio ensures that even in this mode, there is an impressive maximum output increase of 46% compared to the original design.
-
Wide ECU Compatibility: The IP Power Coil Multi Spark is compatible with both original and aftermarket ECUs.
Spark 4X for More Efficiency !

Important Note:
- Professional ECU Tune required to notice the difference.
- OEM Ignition Coil Part# Reference: 22433AA652
Dwell Time Setting -
| V | Dwell |
| 9 | 8.5 |
| 10 | 7.5 |
| 11 | 6.5 |
| 12 | 5 |
| 13 | 4 |
| 14 | 3.4 |
| 15 | 3 |
| 16 | 2.7 |
| 17 | 2.4 |
| 18 | 2.2 |
