Remarks

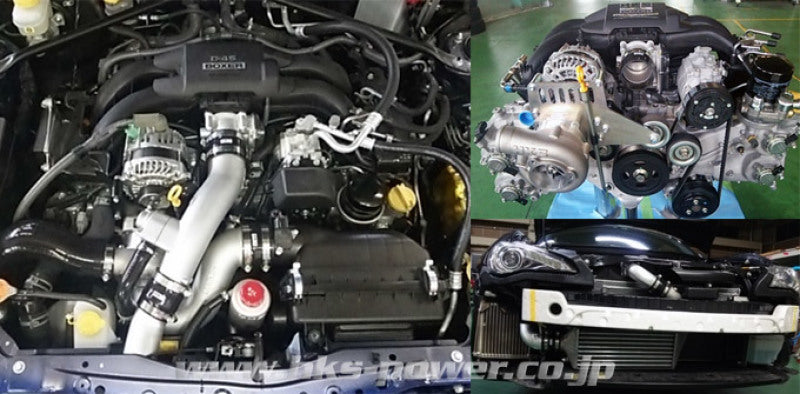

Product: GT SUPERCHARGER PRO KIT, S/C SIZE: GTS7040L, /GT S/C Ver.3 Pro KIT /No engine management part is included. (Resetting of fuel & ignition is required.) /Minor modification of the bumper reinforcement, radiator support, and front chain cover is required. (Estimated Installation Hours: Approx. 8 hrs.) / 2017+ OK by changing the silicon hose for throttle to long one.
Supercharger kit with new layout best match with the 91 octane gasoline.
■Features
- Matching with the 91 octane gasoline is optimized. The kit layout and supercharger setting are improved from the existing kit.
- The engine output shows a 50% increase from the stock.
- PULLEY UPGRADE KIT and E85 fuel + upgraded fuel part enable the engine to output 90% more compared to the stock.
RON 91 gasoline spec. 255HP (+80HP of the stock)
E85 fuel + Pulley Upgrade kit + Fuel Pump + Injector. 320HP (+150HP of the stock)
※Pulley Upgrade Kit, fuel pump, and injector are available separately. - This kit is designed exclusively for 86/FR-S/BRZ. All necessary installation parts are included in the kit.
●REPAIR PARTS
| Code No. | Product | Price | Remarks |
| 12002-KK003 | V-Ribbed Belt 2160 | For repair 6PK2160 | |
| 12002-KK004 | V-Ribbed Belt 2135 | For repair 6PK2135 | |
| 12002-KK102 | GT2-7040L Overhaul (FR-S) | For repair Only Supercharger |
| Make | Model | Engine | Model Year | S/C SIZE | Code No. | Remarks |
|---|---|---|---|---|---|---|
| SUBARU | BRZ | FA20 | 2013 -2020 | GT2-7040L | 12001-KT004 | Engine management part is not included. （Resetting of fuel & ignition is required.) |
Optional Upgrades:
- Pulley Upgrade Kit: 12002-KK001 for E85 is available separately.
The following injectors and pumps are required to use E85 data.
- 16U-02-0700-4 Deatsch Werks Fuel Injector 700cc
- 9-651-1010 Deatsch Werks Fuel Pump
PULLEY UPGRADE KIT and E85 fuel + upgraded fuel part enable the engine to output 90% more compared to the stock.

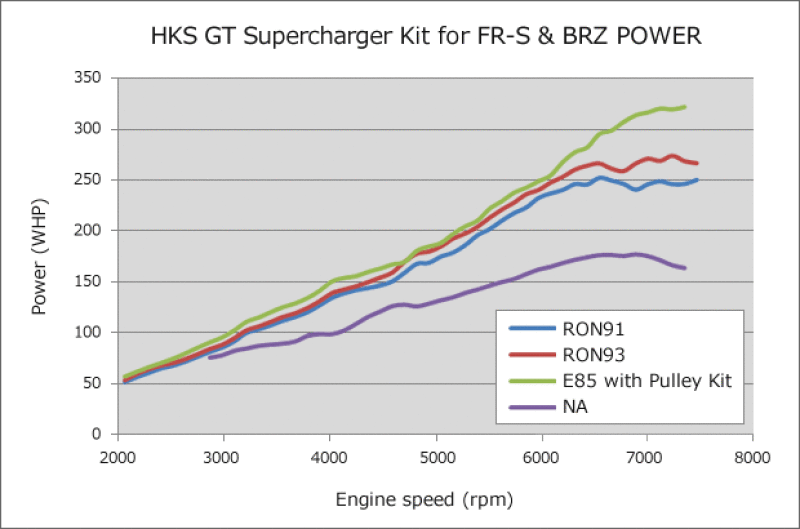

HKS S/C RON91: RON91 gasoline spec. 255HP (+80HP of the stock)HKS S/C E85: E85 +PULLEY UPGRADE KIT + Fuel Pump + Injector. 320HP
Choose options
HKS GT2 Super Charger System - 2013-2021 BRZ
Sale price$5,264.99 CAD
