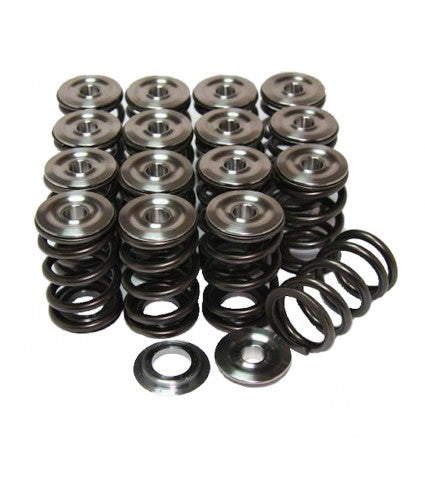

GSC Power-Division Single Cylindrical Valve Spring Kit w/ Titanium Retainers - Subaru FA20 WRX/BRZ

Ths GSC Power-Division Conical Valve Spring Kit with Ti Retainer for the Toyota 2JZ includes 24 titanium retainers and 24 conical valve springs. True conical valve springs are not a new concept and are industry proven to provide several key advantages over traditional spring designs. A major advantage of conical springs vs. traditional cylindrical or beehive springs is the damping and removal of valvetrain harmonics. Of the three designs, conical springs are the front runners in valvetrain harmonic stability. Utilizing a varying coil diameter as well as coil spacing, a conical spring acts as a natural harmonic damper in the transfer of valvetrain shock. This translates to less stress, less wear, and a longer life of the included components. This level of protection is needed in today’s engines being pushed to their physical and mechanical limits by aftermarket modifications. Every GSC conical spring offers a superfinished surface treatment to go along with the patented, multi-step heat treatment process. The finished product is an extremely reliable, high-performance spring allowing the users to push higher RPMs, use more aggressive cam profiles, and turn up higher boost pressures.



Setup: Cylindrical

Coil Bind: 0.782in

Install Height (Front / Back): 1.2798in / 1.283in

Seat Pressure (Front / Back): 89lbs / 88lbs

Maximum Valve Lift: 0.433in

2015-2021 Subaru WRX

2013-2021 Subaru BRZ
