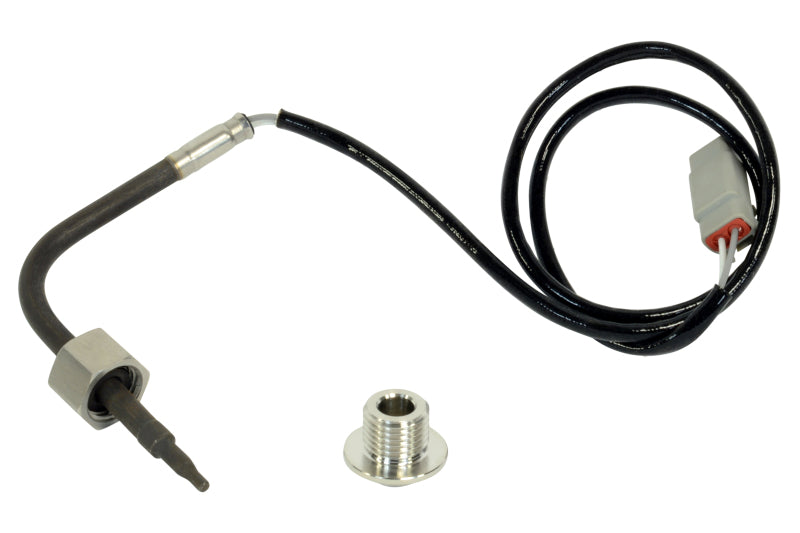

AEM RTD Exhaust Gas Temperature (EGT) Sensor Kit

RTD Thermocouple sensors are perfect the perfect solution for viewing and logging various temperatures including exhaust gas temps (EGTs), cylinder head temps, pre and post intercooler temps, air temps, water temps, fluid temps, disc brake temps and more.



AEM’s RTD-Type Temperature Sensor is packed with features that deliver consistent measurement and long life. It features a closed-tip design that lasts longer than the previous generation’s perforated tip design and the tip is smaller for less intrusion—and less restriction. Inconel-tubing protects the wiring, which is terminated with a high-quality DTM-style 2-pin connector. The sensor reads a temperature range of -40 to 1,560 degrees F (-40 to 850 degrees C), and its thin-film platinum element provides a high degree of accuracy (+/- 0.9% from 536 to 1,560 degrees F). Our RTD-Type Sensor features a 90-degree bend at the sensor tip for easier installation in tight spaces, and it includes a weld-in sensor bung with machined M14x1.5 threads.



- Temperature Range: -40°F to 1,560°F (-40°C to 850°C)
- Protective Tube Material: Inconel 601
- Sensor Thread: M14x1.5
- Sensor Element: Thin film platinum
- Nominal Resistance of Element: 200 Ω at 0°C
- Accuracy: ±2.5°C from -40°C to 280°C / ±0.9% from 280°C to 850°C
- Response Time T63: <11 seconds at 300°C, air velocity of 11m/s / <6.5 seconds at 300°C, air velocity of 70m/s



- This is the durable closed-tip RTD-type high temp sensor.



Universal
