ACTIVE™ Wash Cart & Hose Reel

Active™ Wash Cart & Hose Reel

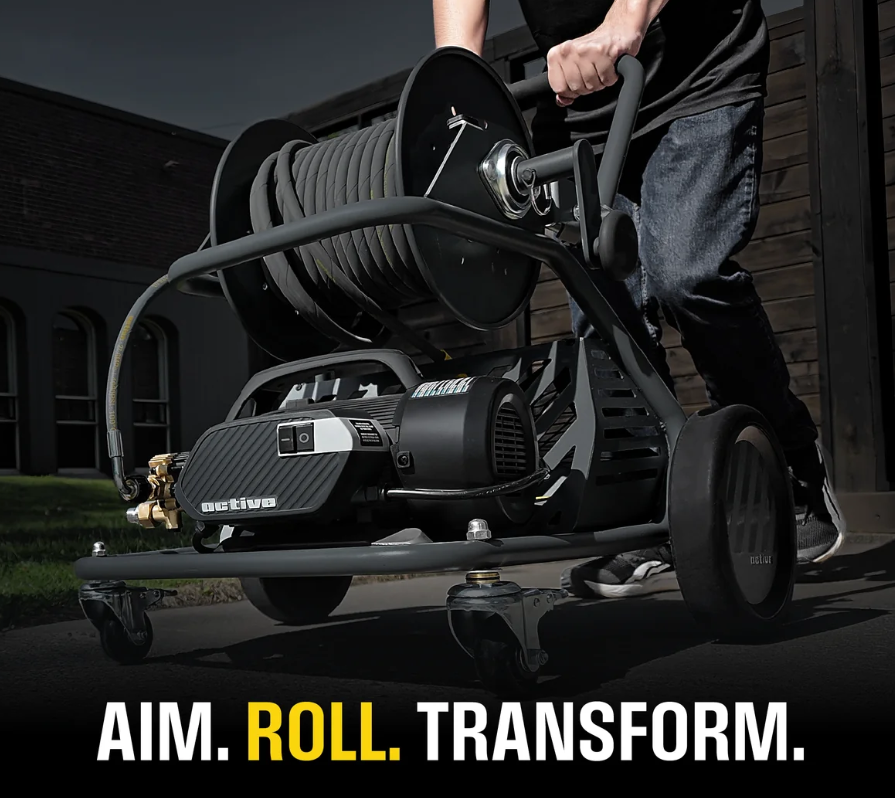

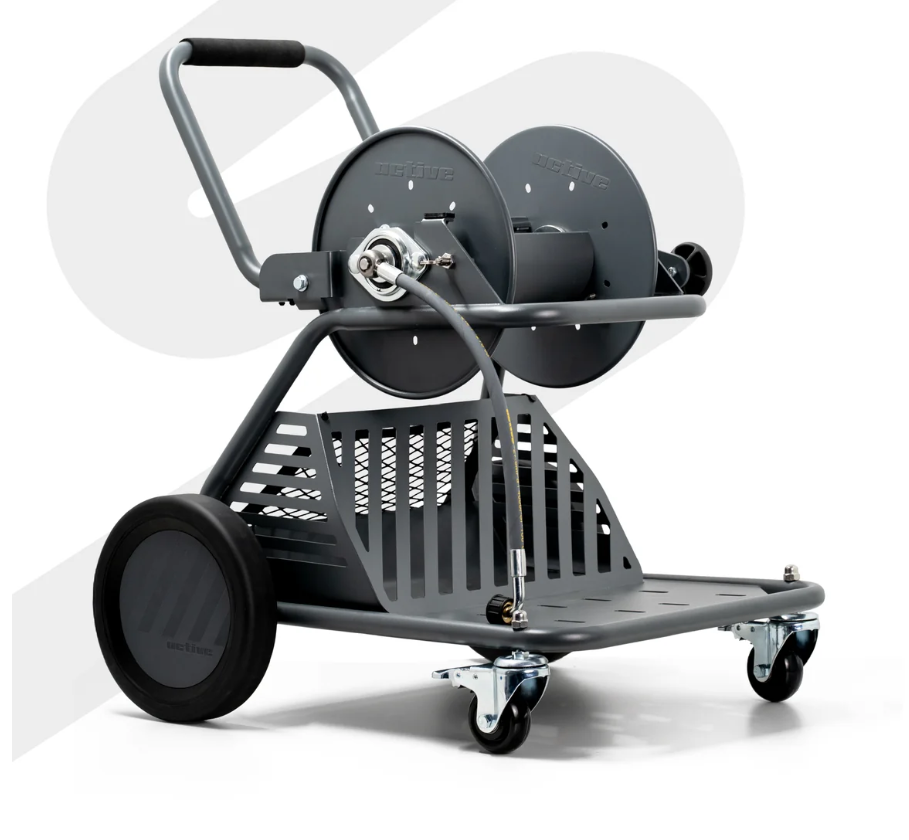

Keep your complete pressure washing setup organized, mobile, and ready to use with the Active™ Wash Cart & Hose Reel. Designed as an all-in-one storage and mobility solution, this cart provides a dedicated place for your pressure washer, hose, and accessories while making it easy to move your setup around the garage, shop, or driveway.

The integrated all-steel hose reel accommodates up to 100 ft of 3/8" or 5/16" pressure washer hose and features a 304 stainless-steel valve system for improved corrosion resistance. A quick-release locking system keeps the hose reel securely positioned where you want it.

Built around a durable carbon-steel frame, the cart rolls on two large 10" rear wheels along with two 3" locking front casters. The rotary handle can be locked into its working position or folded into its storage position, allowing the cart to tuck neatly against a garage wall when not in use.

While optimized around Active™ pressure washers and accessories, the cart features universal compatibility with other mountable pressure washers and pressure washing accessories.

Features

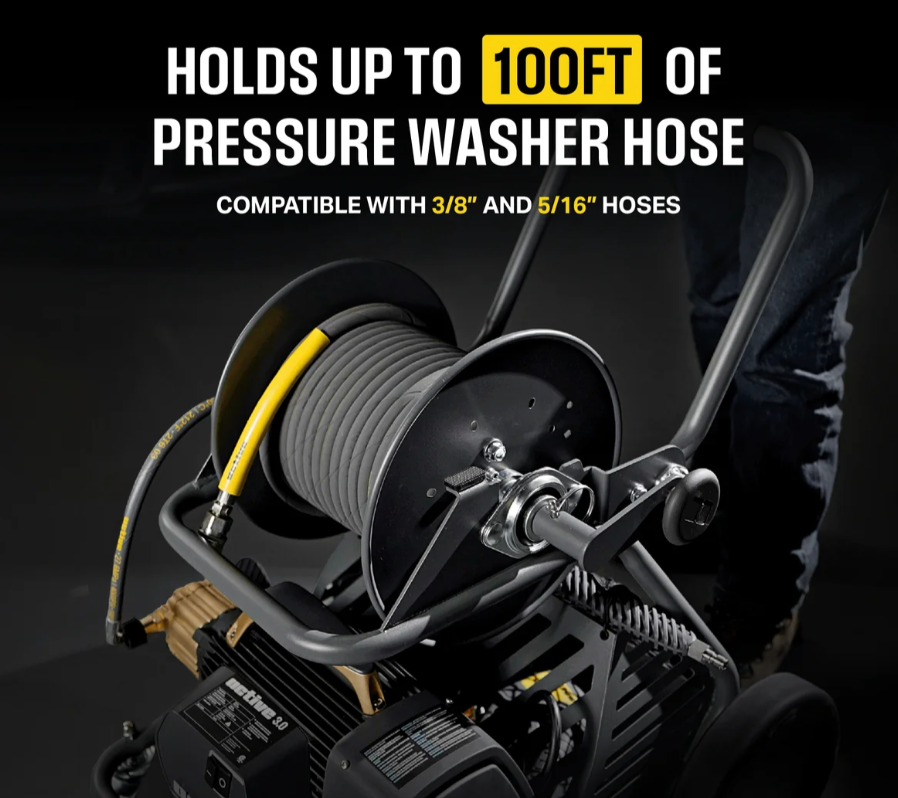

• Integrated all-steel pressure washer hose reel

• Holds up to 100 ft of 3/8" or 5/16" pressure washer hose

• 304 stainless-steel hose reel valve system for corrosion resistance

• Quick-release reel locking system

• Durable carbon-steel cart construction

• Designed for Active™ pressure washers while remaining compatible with other brands

• Two large 10" rear wheels for easy mobility

• Two 3" locking front casters for stability while in use

• Rotary handle with dedicated work and storage positions

• Handle locks into the working position with an integrated locking pin

• Integrated accessory storage area with retaining net

• Includes jumper hose for connection to the pressure washer

• Compact folding design allows the cart to be stored against a garage or shop wall

Hose Reel Specifications

Maximum Hose Capacity:
Up to 100 ft

Compatible Hose Sizes:
3/8" or 5/16"

Maximum Peak Pressure:
3,000 PSI

Operating Pressure:
2,100 PSI

Maximum Flow Rate:
3.5 GPM

Valve Construction:
304 Stainless Steel

Cart Specifications

Frame Material:
Carbon Steel

Rear Wheels:
2 × 10" × 2" plastic wheels with PVC/rubber-coated rim

Rear Wheel Hardware:
Metal wheel shaft and shaft pins

Front Casters:
2 × 3" locking casters

Handle:
Rotary design with work and storage positions

Gross Weight:
22 kg / 50 lbs

What's Included

• Active™ Wash Cart

• Integrated hose reel assembly

• Hand crank with locking pin

• Jumper hose for pressure washer connection

• 2 × 10" rear wheels with shaft and pins

• 2 × 3" locking casters with hardware

• 2 × caster spacers

• Accessory storage net

• Pre-installed hose clamp set

• 4 × M10 bolt and nut sets for securing the hose reel to the frame

• 2 × M10 caster nuts

Assembly

Some customer assembly is required. The hose reel mounting hardware is supplied, while the rear wheels, front casters, and accessory storage net require installation.

Compatibility

The Active™ Wash Cart & Hose Reel is optimized for Active™ pressure washers and accessories, but is designed to accommodate other brands of mountable pressure washers and compatible pressure washing accessories.

Warranty

The Active™ Wash Cart & Hose Reel is backed by a 2-year residential and commercial warranty from Active Products.

Product registration is required for warranty support. Keep your proof of purchase, retailer information, order number, and product serial number for registration.
